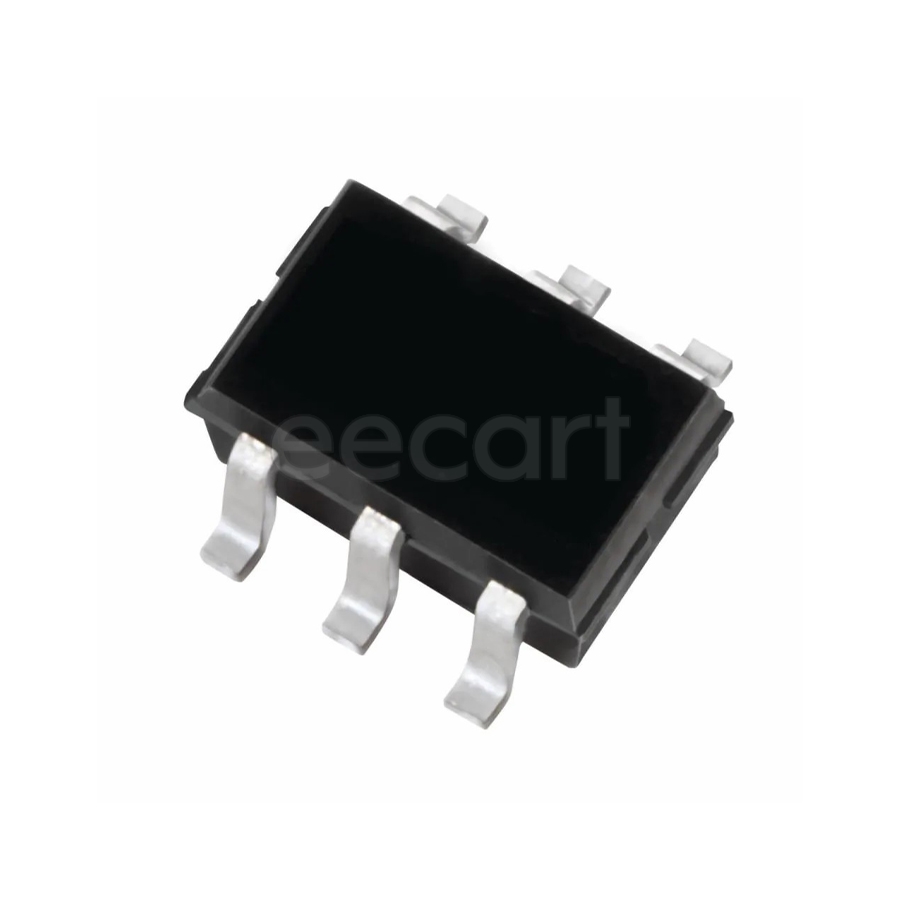

NUP2301MW6T1G
Manufacturer:
On Semiconductor
Mfr.Part #:
NUP2301MW6T1G
Datasheet:
Description:
TVS Diodes SC-88-6 SMD/SMT Working Voltage:70 V Breakdown Voltage:70 V Clamping Voltage:70 V
| Parameter | Value |
|---|---|
| Capacitance | 1.6 pF |
| Voltage Rating (DC) | 6 V |
| Length | 2 mm |
| Width | 1.35 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 6 |
| Leakage Current | 2.5 µA |
| Power Rating | 500 W |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 1.25 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Interface | I²C |
| Working Voltage | 70 V |
| Peak Pulse Current | 2 A |
| Number of Channels | 2 |
| Number of Lines | 2 |
| Breakdown Voltage | 70 V |
| Max Reverse Leakage Current | 2.5 µA |
| Element Configuration | Dual |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 70 V |
| Reverse Standoff Voltage | 70 V |
| Clamping Voltage | 70 V |
| Power Line Protection | No |
| Max Surge Current | 2 A |
| Number of Bidirectional Channels | 2 |
| ESD Protection | Yes |
| Reverse Voltage | 70 V |
| Test Current | 100 µA |
| Max Junction Temperature (Tj) | 150 °C |
| Max Breakdown Voltage | 70 V |
| Peak Non-Repetitive Surge Current | 2 A |
| Reverse Current | 2.5 µA |
Stock: 28
Distributors
pcbx
pcbxUnit Price$0.34368
Ext.Price$0.34368
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.34368 | $0.34368 |
| 10 | $0.30643 | $3.06430 |
| 50 | $0.27322 | $13.66100 |
| 100 | $0.23809 | $23.80900 |
| 500 | $0.20748 | $103.74000 |
| 1000 | $0.19983 | $199.83000 |
| 3000 | $0.19247 | $577.41000 |
| 5000 | $0.18218 | $910.90000 |
